RatPack Filter

RatPack Filter

$126.00 USD
$126.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Size
Material

Ratpack filtrer from RATRIG

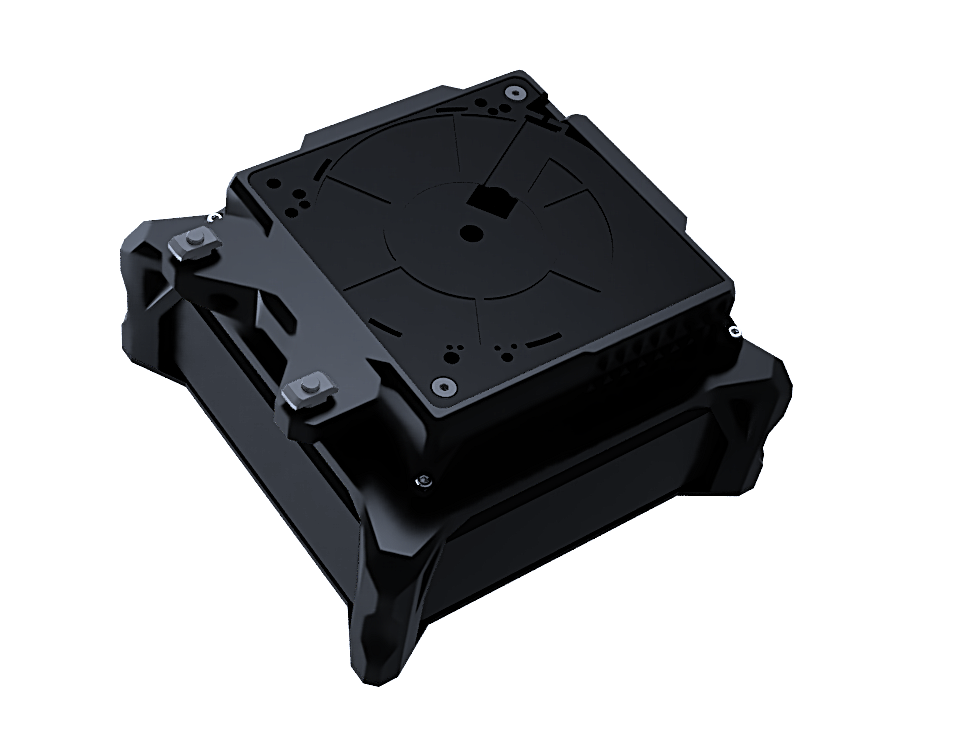

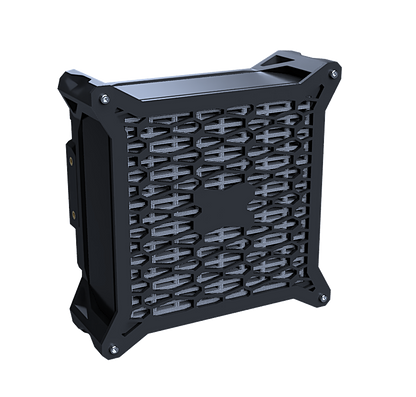

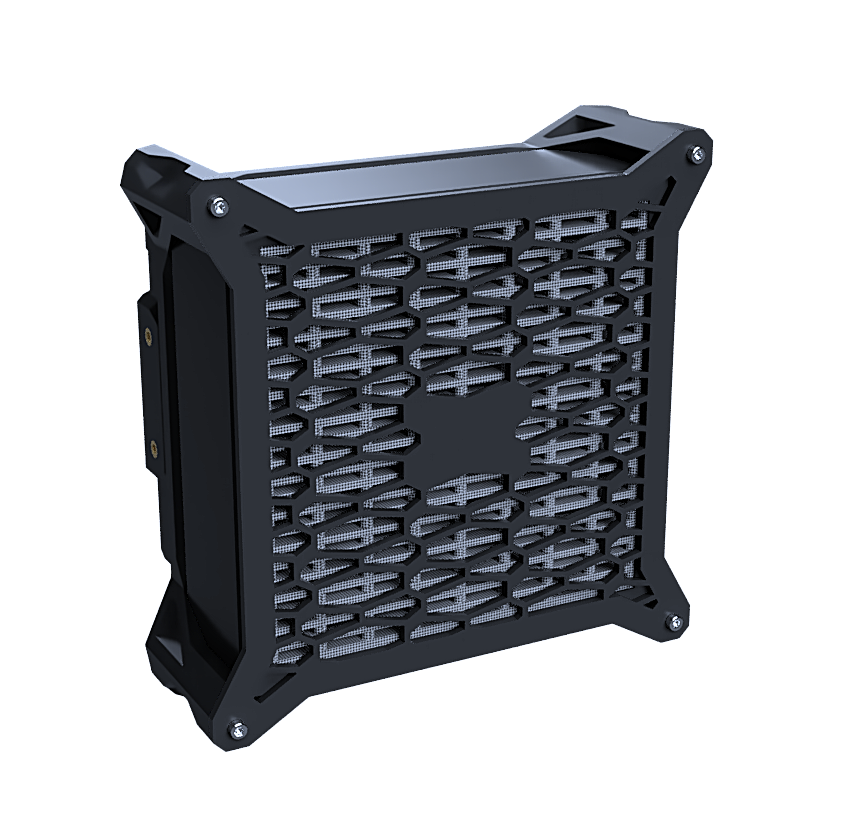

A compact HEPA grade filter module with activated carbon and active air circulation, to keep the atmosphere inside your 3D Printer enclosure free of any harmful fumes/particles. The activated carbon is effective against odors and VOCs (Volatile Organic Compounds).

The full integration with RatOS and native Klipper allows you to easily set up air circulation triggers and automations throughout the print.
Designed for V-Core 4 (Large and small version) , compatible with V-Core 3 (Small version), and featuring a design with multiple mounting points so you can easily adapt it to your printer of choice.
Available in 2 sizes, to maximize compatibility options with smaller printers.

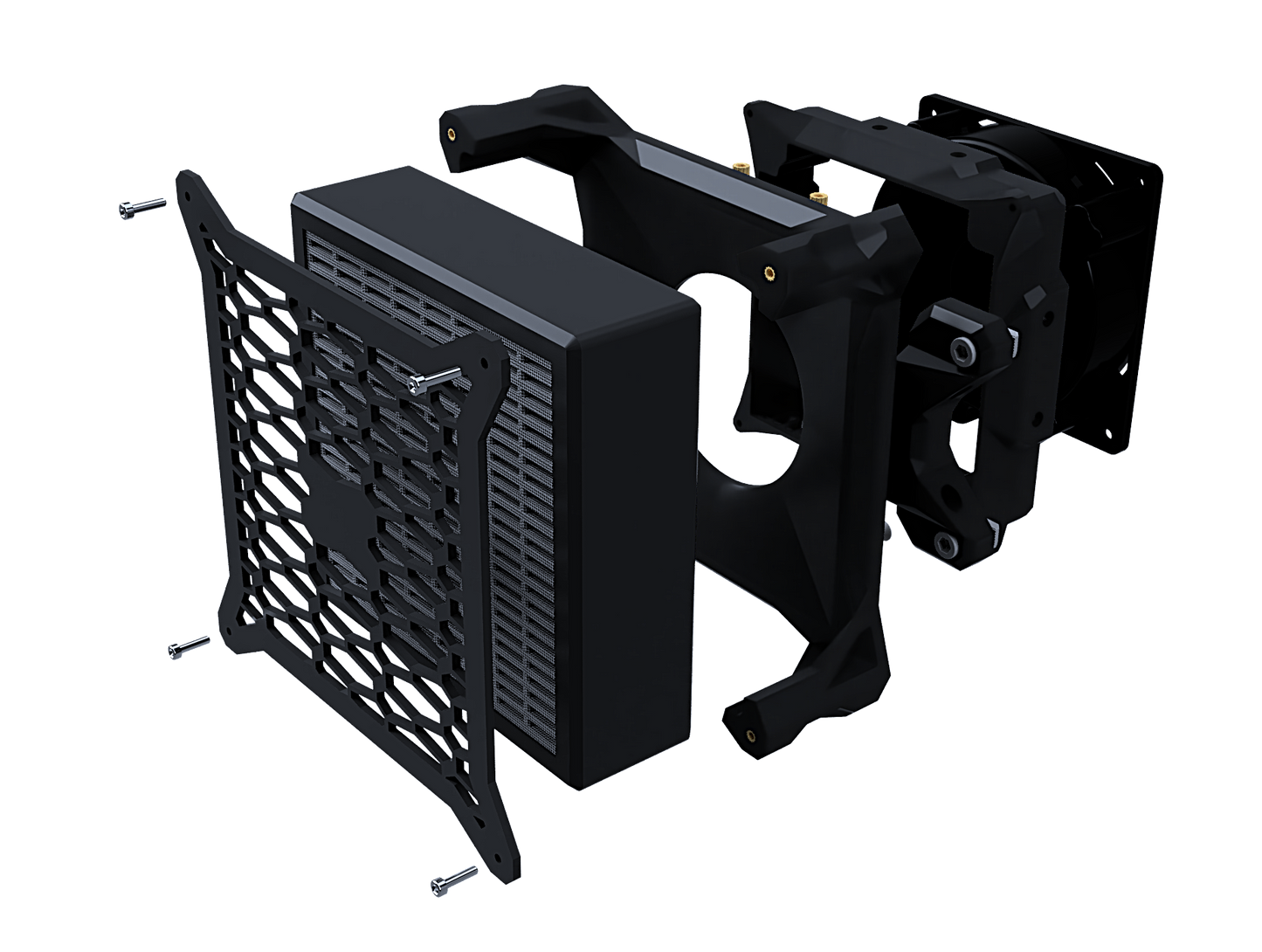

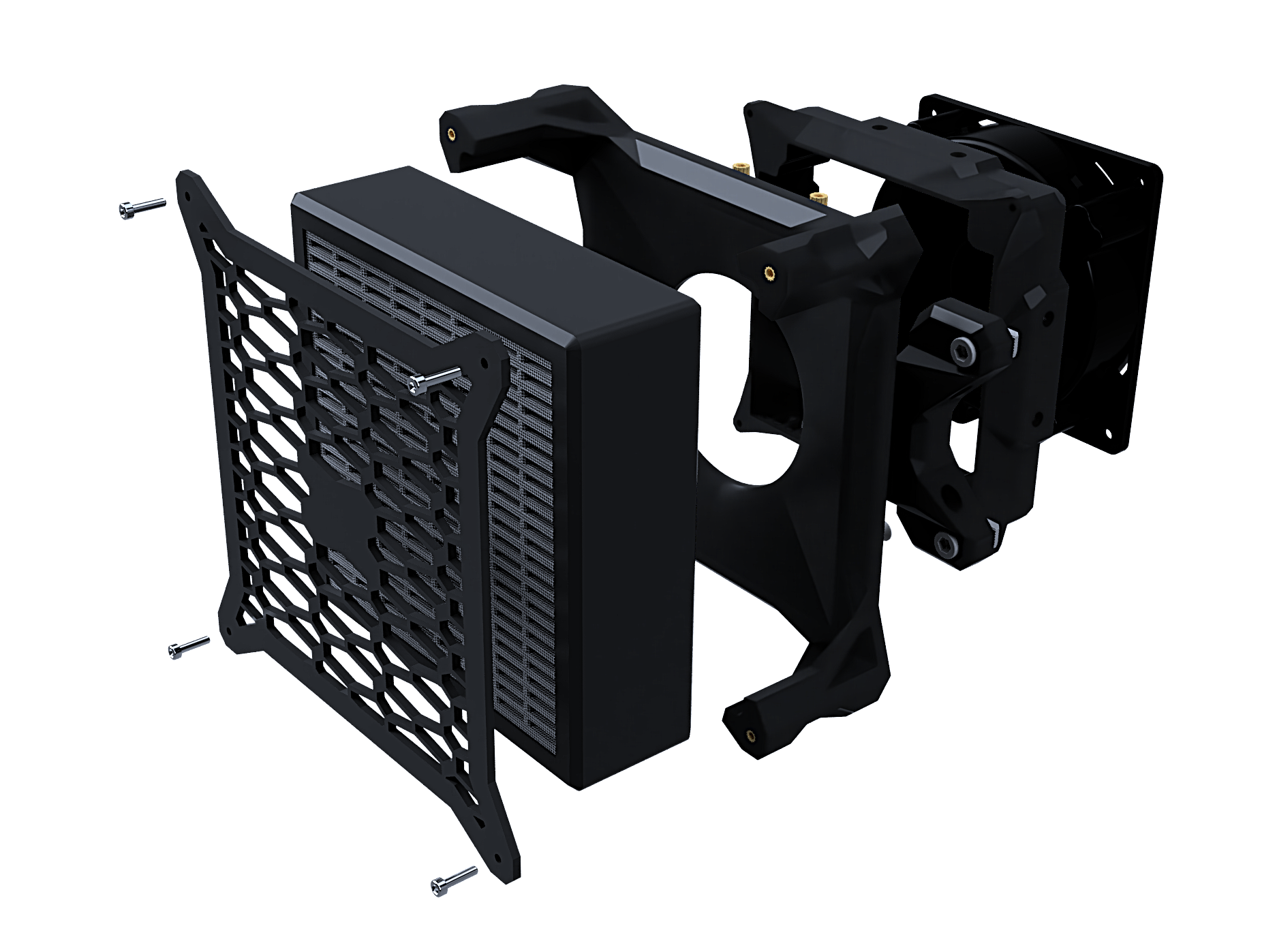

 Each pack includes:

Fully assembled filtering unit containing

-Printed parts

-120mm x 32mm Blower PWM 12v

-HEPA H14 Unit (LARGE) or H13 (SMALL)

-All frame mounting adaptation + screws



 Why?:

Filtering the printer volume is a good thing, since every materials release fumes and fine particules + odor, this unit is here to help to purify* the printer space and the room.

This edition of the Ratpack is made to be used with specific HEPA filters, meaning filters are much more easily available when replacment is needed

Those filters are HEPA14 or 13 grade, a very high standard on filtration efficiency, respectively  99,995% and 99.95% for the thiner particule size (MPPS) 0.3μm.

*Venting the room is still advised

Those filters are recommended by the CNRS institute


Keypoints:

-HEPA H14/13 grade

-High availability of the filter replacement

-Very high efficiency for 3D printing industries, especially ABS and Nylon fumes

-Frame available in PA12CF15 or ASA



 Intensive usage Occasionnal usage
Replace 4-6 months Replace 8-12 months



  • Joint: PU foam
  • Class: HEPA H14/H14
  • Active material: pellet 1-3 mm, coconut
  • Type de filtre: Honeycomb
  • Milter material: Coton, PP and PET
  • Filter air resistance: 120 Pa (max.)
  • Max airflow: 55 m³/h / 32.4 CFM
  • Working temperature : 0-60 °C
