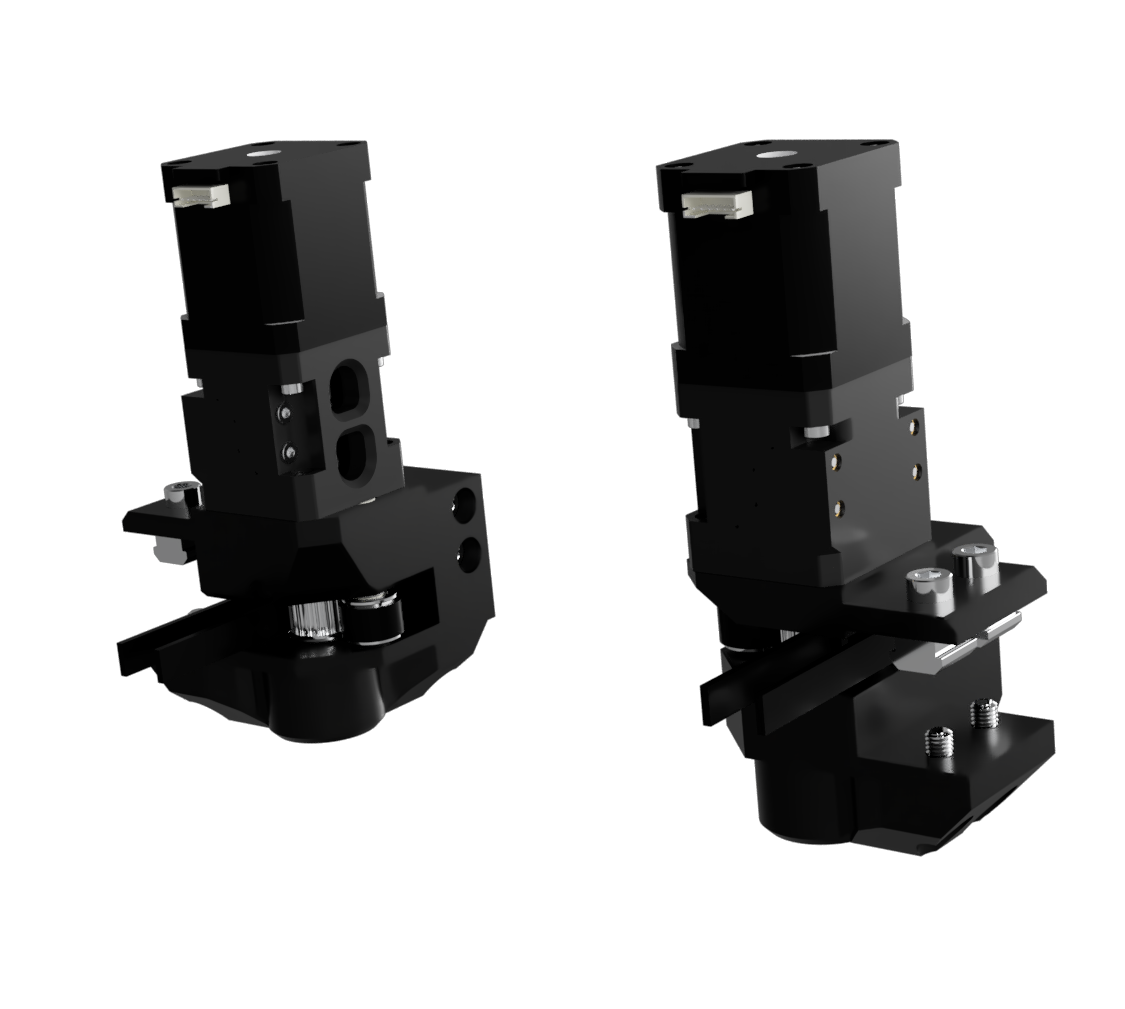

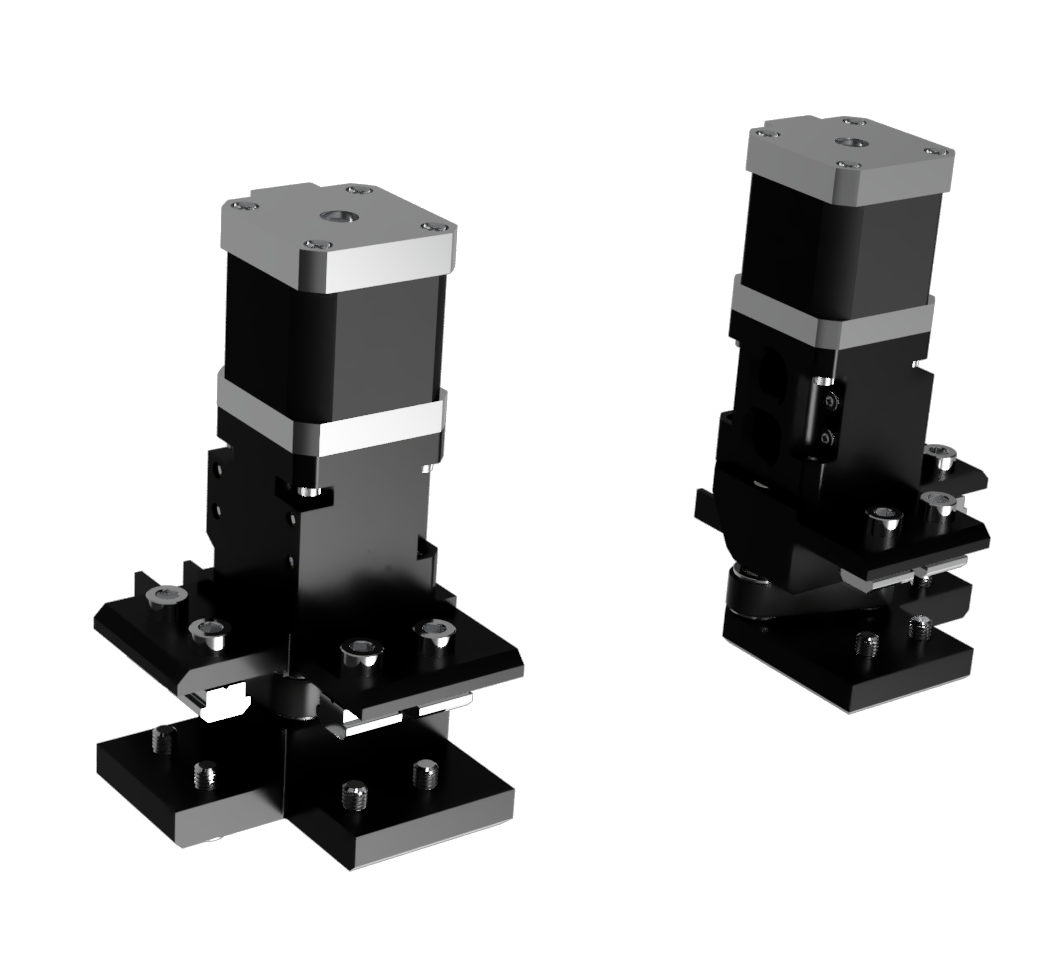

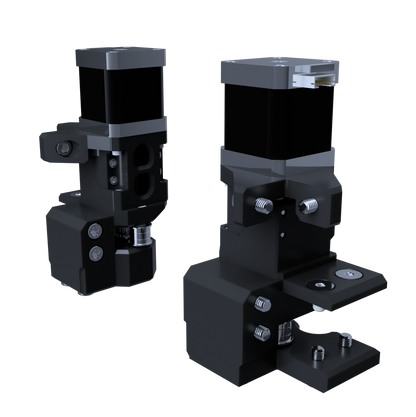

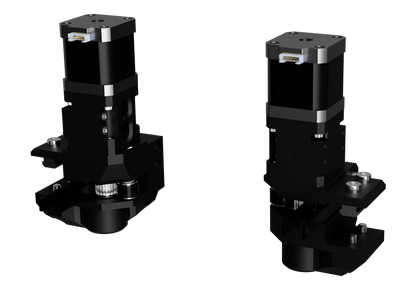

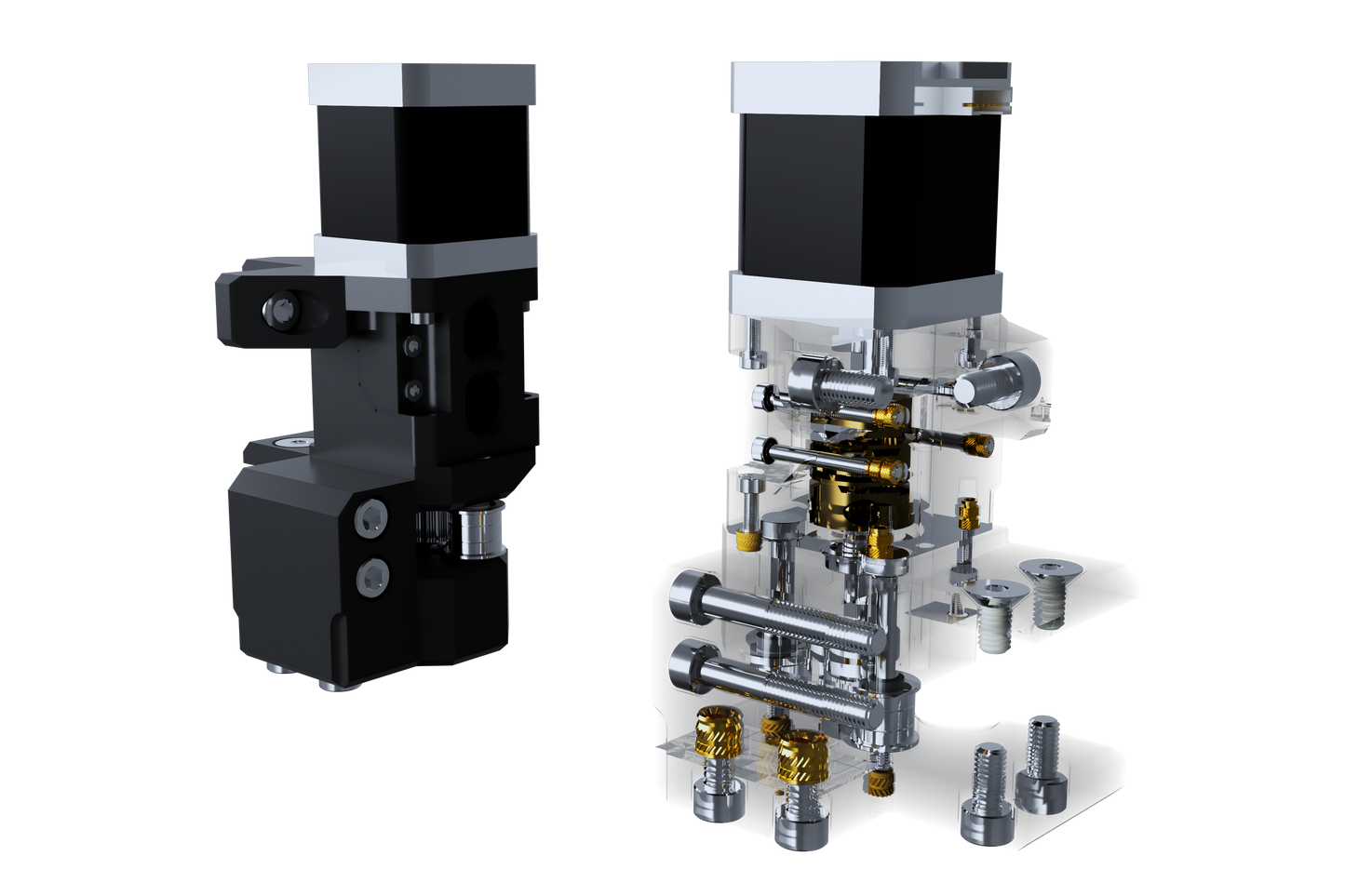

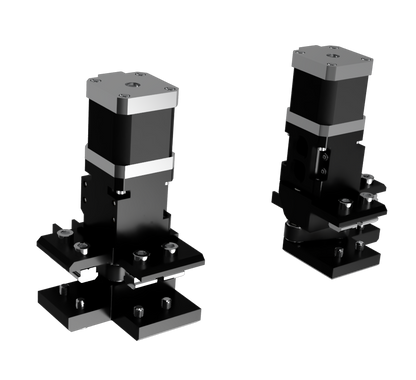

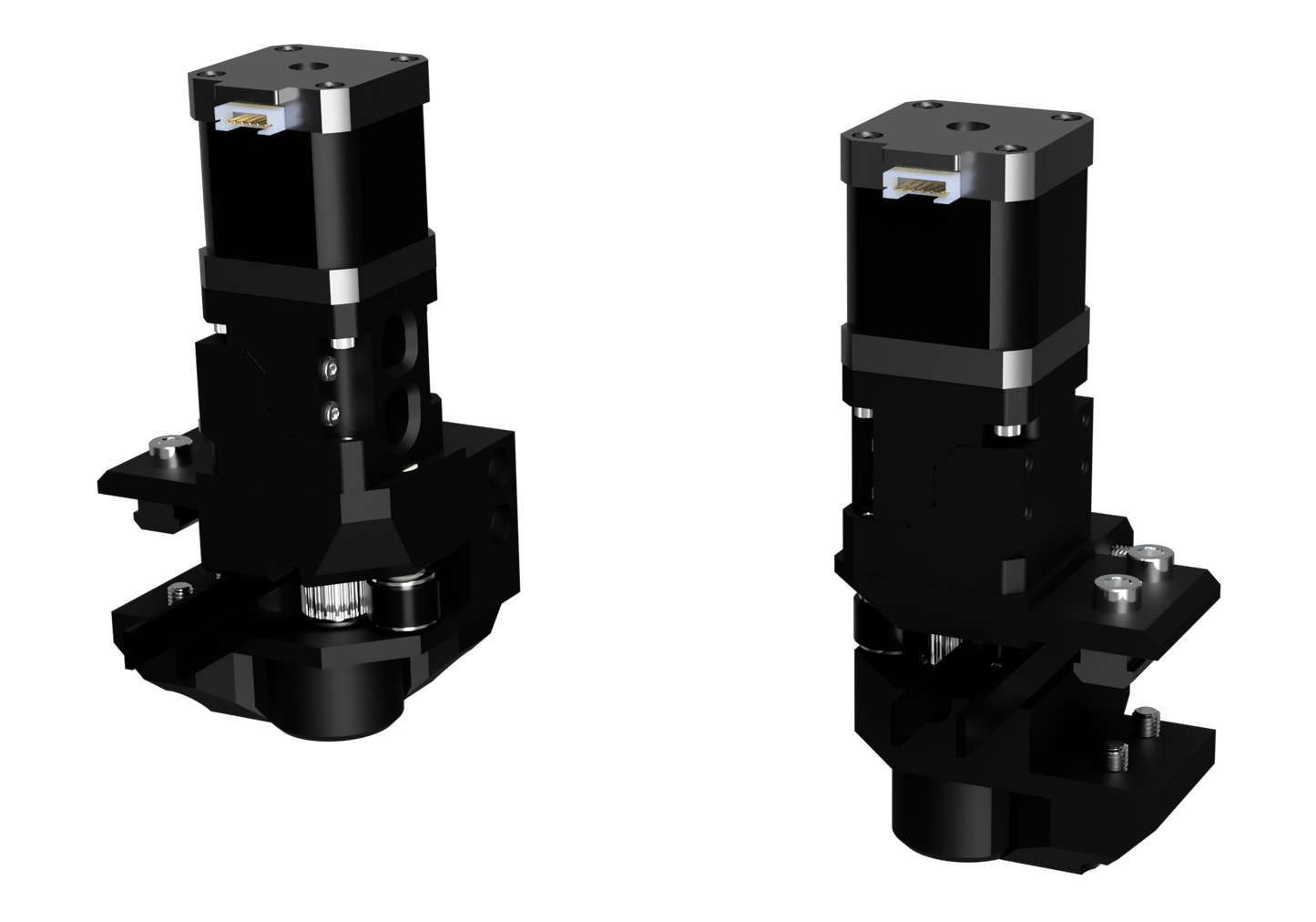

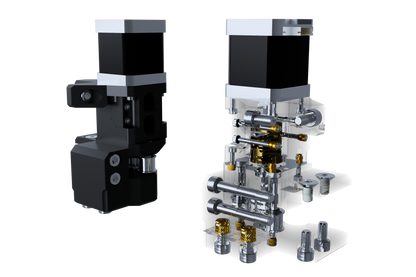

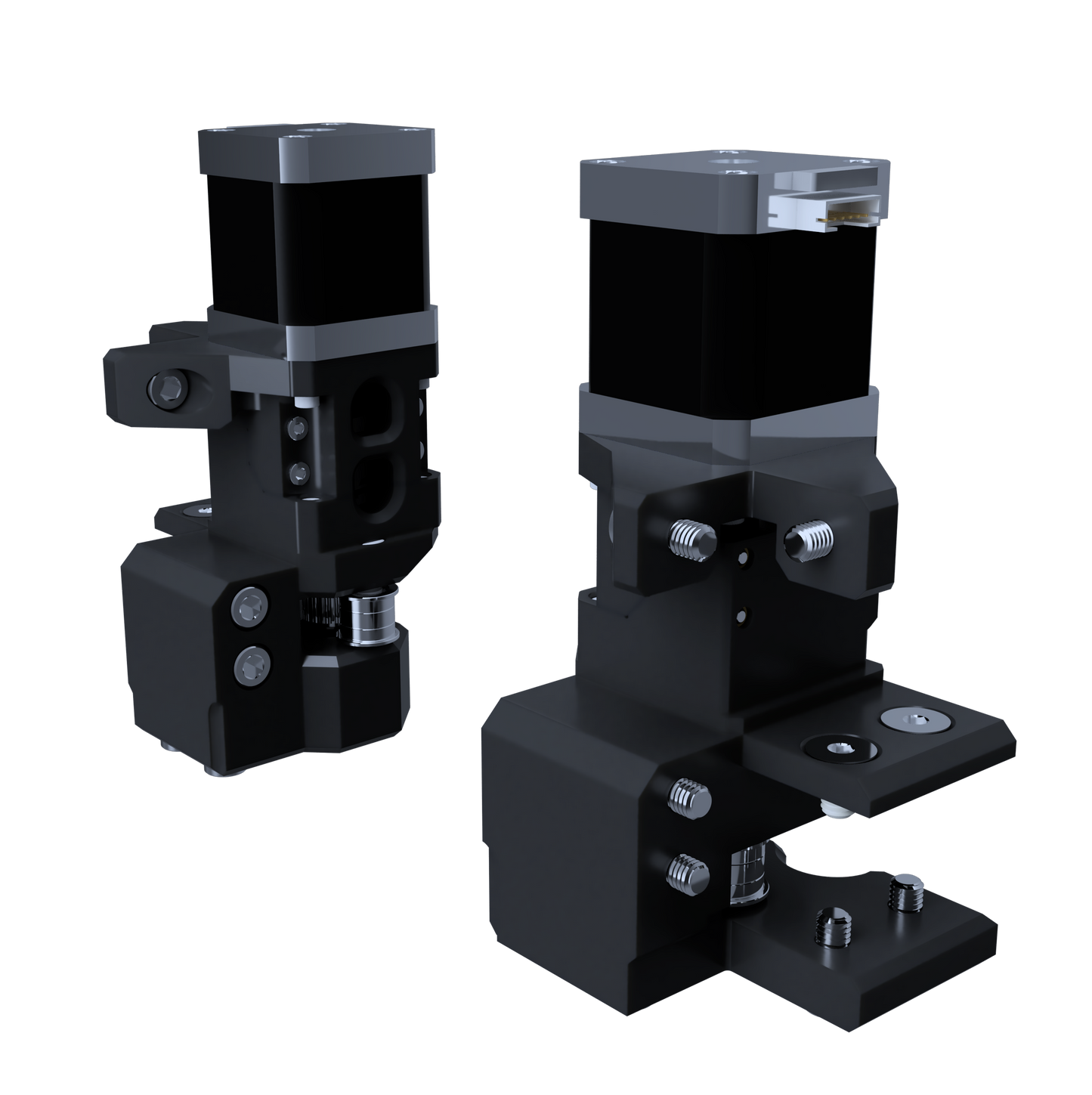

BRS-AWD DRIVE 1.35a (FULL KIT)

-AWD mod to add ANY Vcore version an easy and reliable AWD configuration

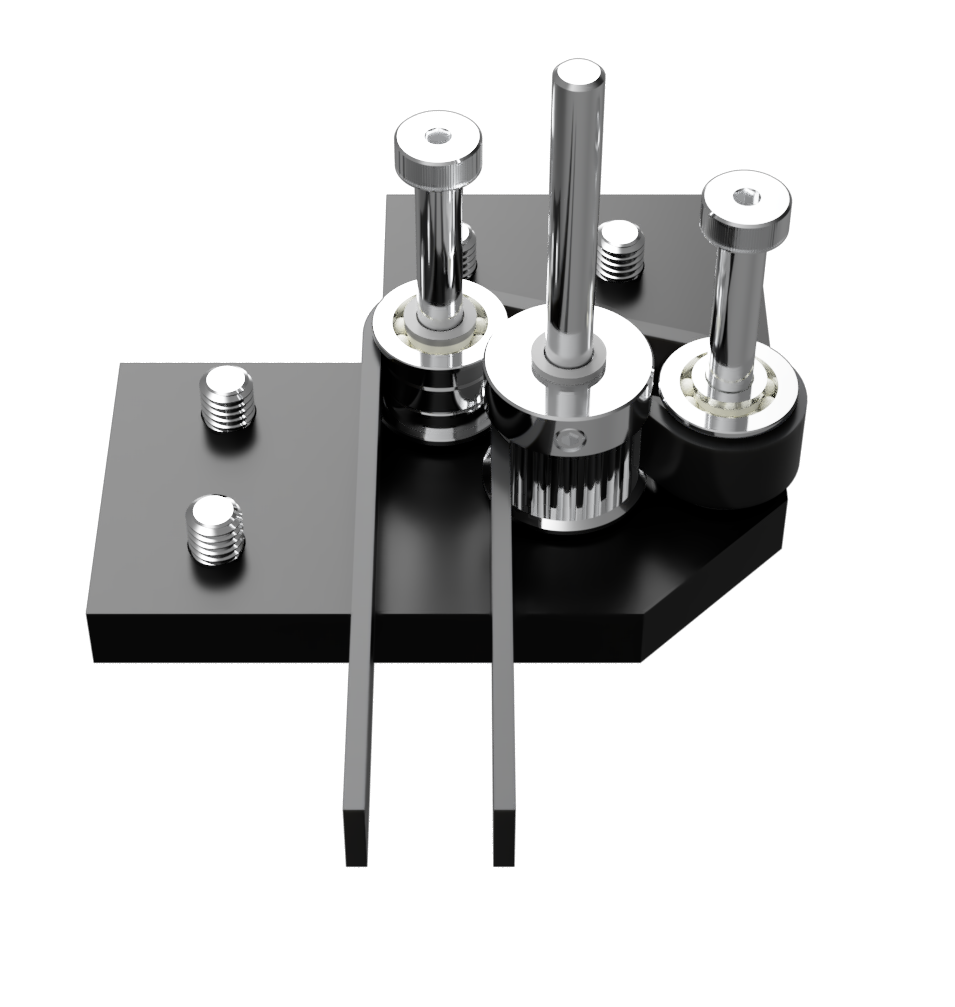

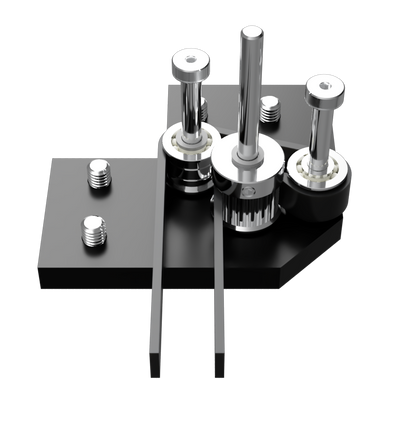

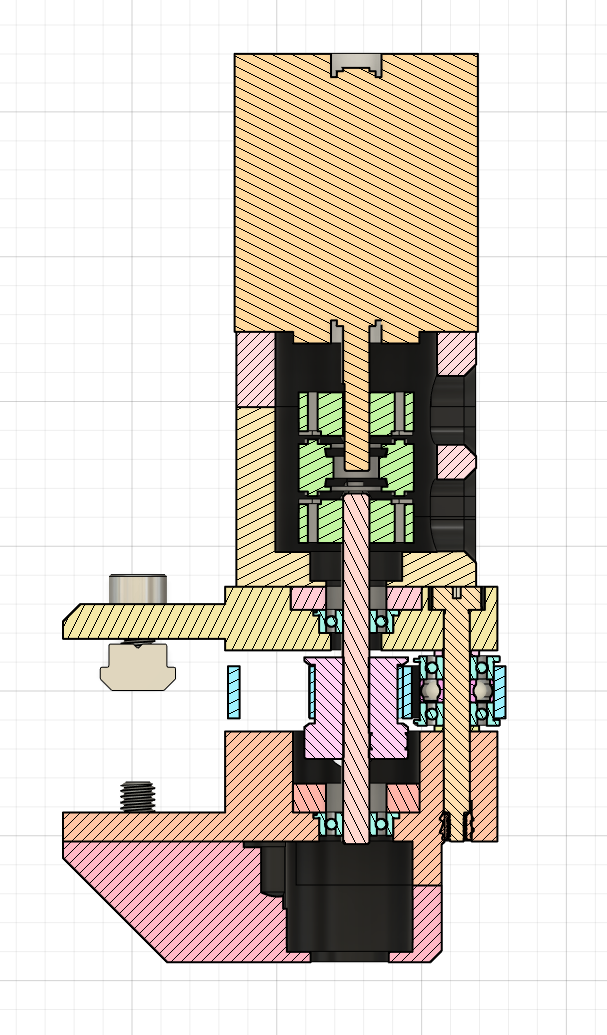

- Drive are mounted on a damper system, reducing noise. Pulleys secured with Abec-5/7 bearing for an increased lifespan

- Easy assembly, no modifications of the Frame needed, no need of Enclosure modifications. Require at least 30-60mm more belt lenght

Require Mirrored rear block (available here), If an L3ver M2 is used, please consider swapping to the AWD layout. The L3ver M1 is natively compatible.

- COMPATIBLE WITH: Vcore 3.0, Vcore 3.1, 200mm 300mm 400mm 500mm and more, Opened or closed front, Enclosure 1.0 (VC3.0), Extended Enclosure 2.0 (V3.1), Stock Z leadsrews, MBFS Ventermech, BRS Ballscrews Z-upgrade 1.0 and 2.0 with SFU1204 and 1605, L3ver M1 and L3ver M2 (AWD layout)

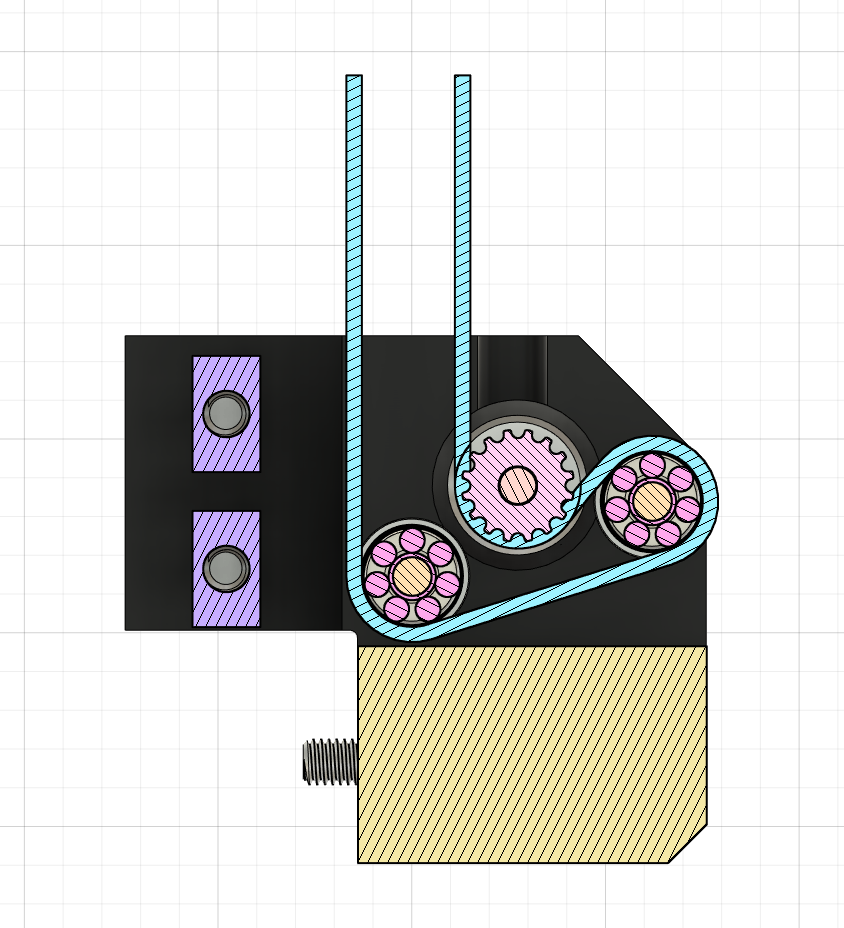

Bearing and Pulleys has 1mm variation on position between the VC3.0 and VC3.1 version to perfectly align the 3.0/3.1 belt path variations

STL Files

GITHUB Page

MANUAL

INCLUDED:

• Printed parts with inserts and embedded bearings (depending the layout)
• 8x F695
• 4x 695zz

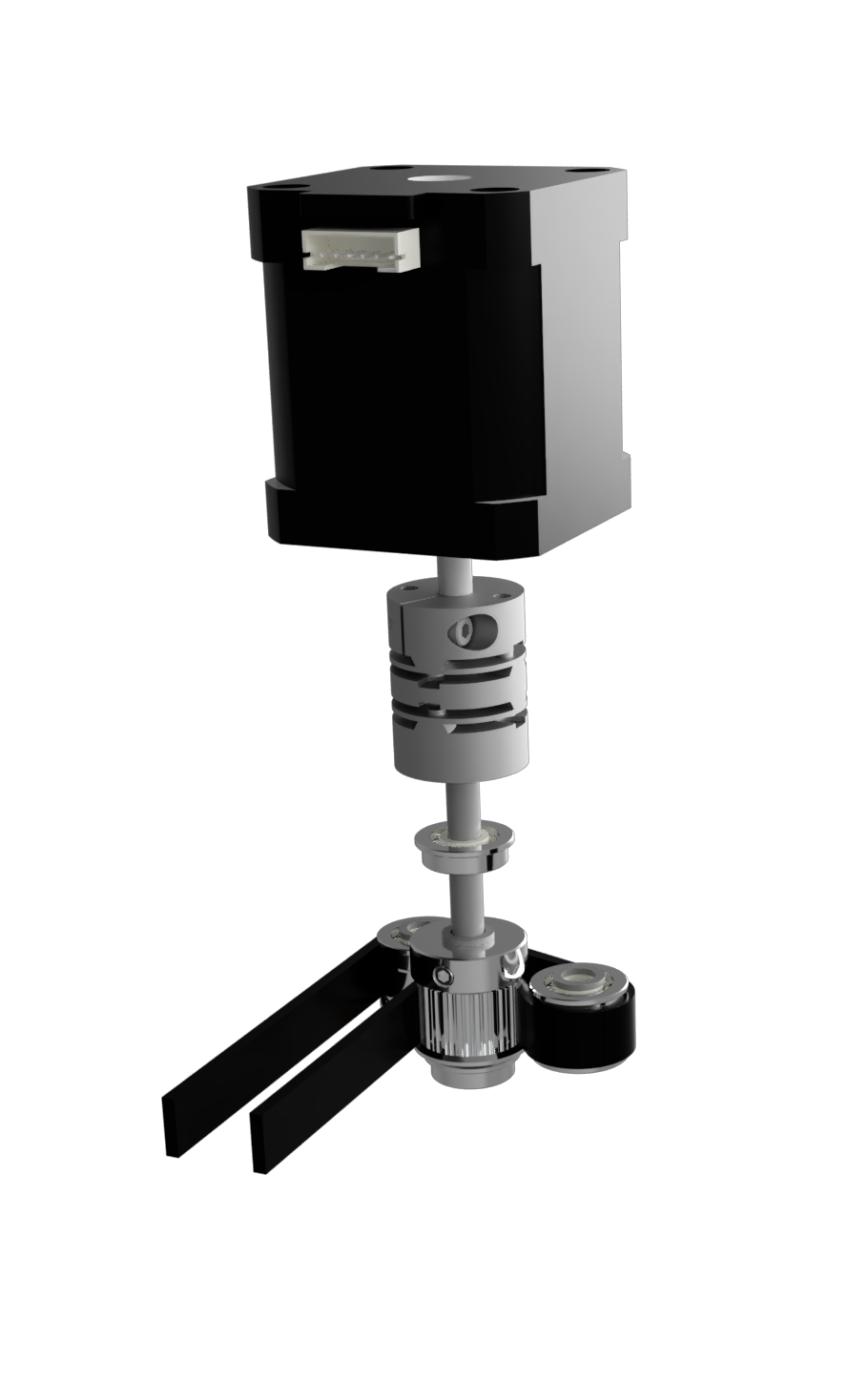

• 2x 5x65mm shaft
• 2x high quality disc couplers
• 2x high quality GT2 Pulleys (16t)
• Screws kit to fix to the frame + motor screws (M6x12, M6x40, M6 Tnuts,..)
• 4x D5M4x35mm shoulderbolt
