BRS-TMC5160pro X4 48V Kit

BRS-TMC5160pro X4 48V Kit

$185.00 USD
$185.00 USD
Vente Bientôt Disponible
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.
KIT

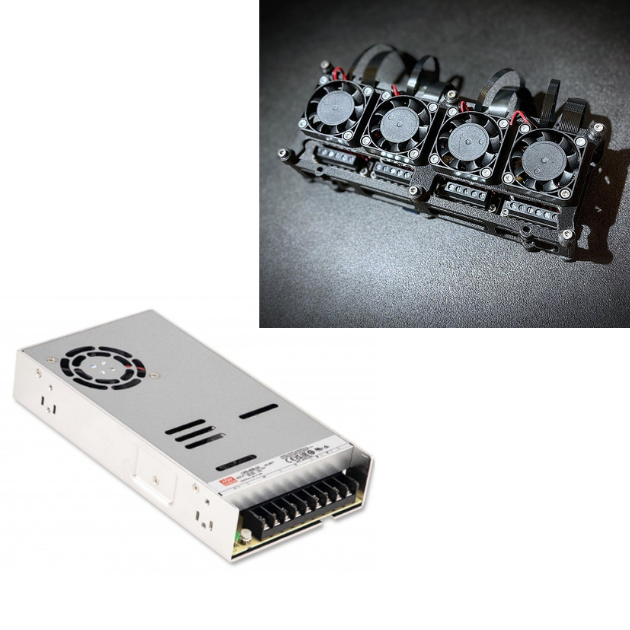

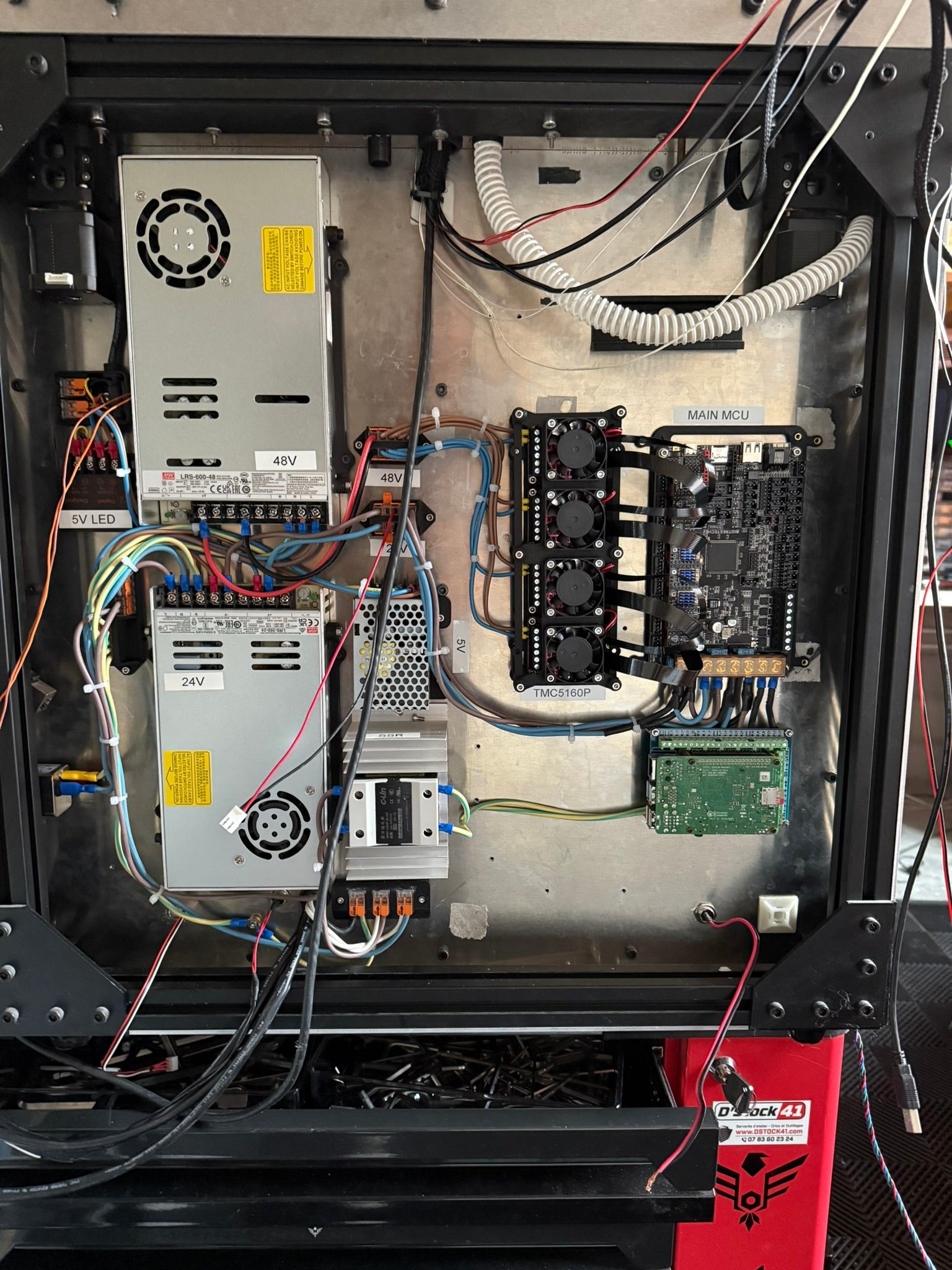

This kit allow to convert any machine with 4x XY motors to 48V with powerful external TMC-5160Pro

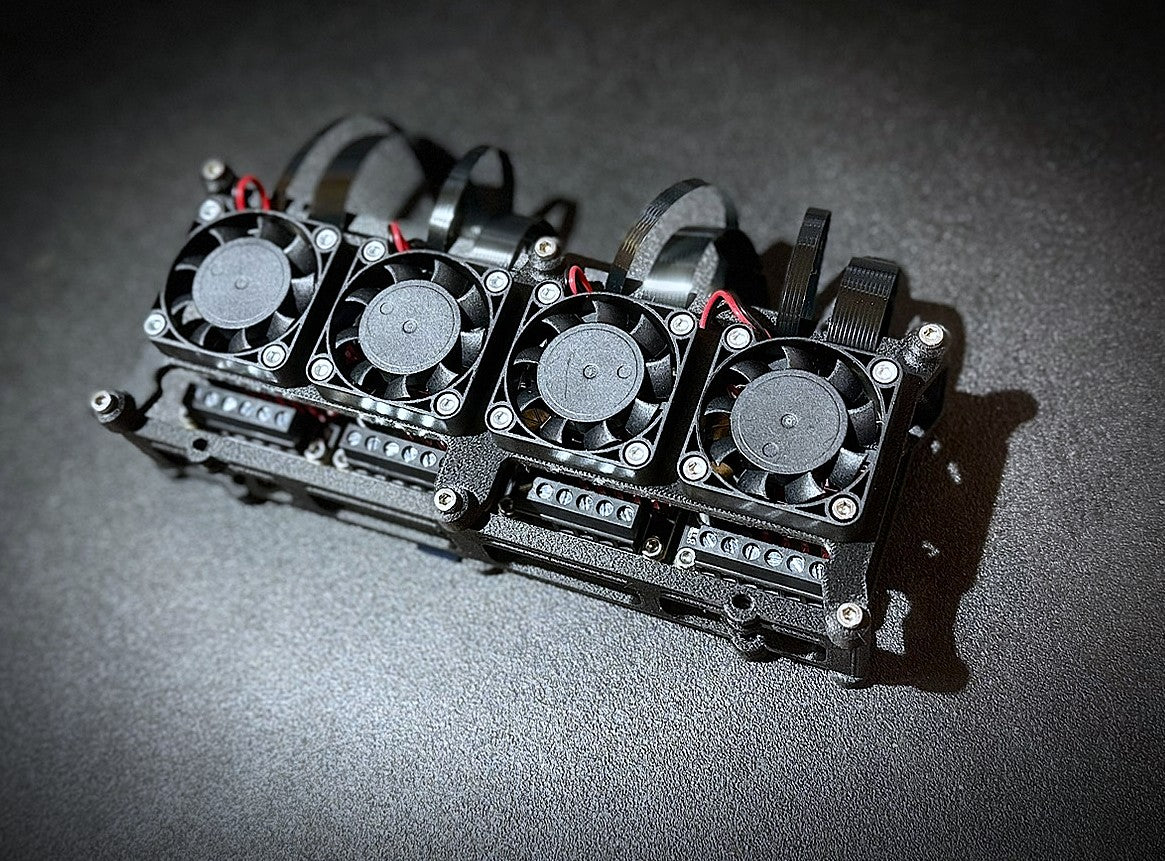

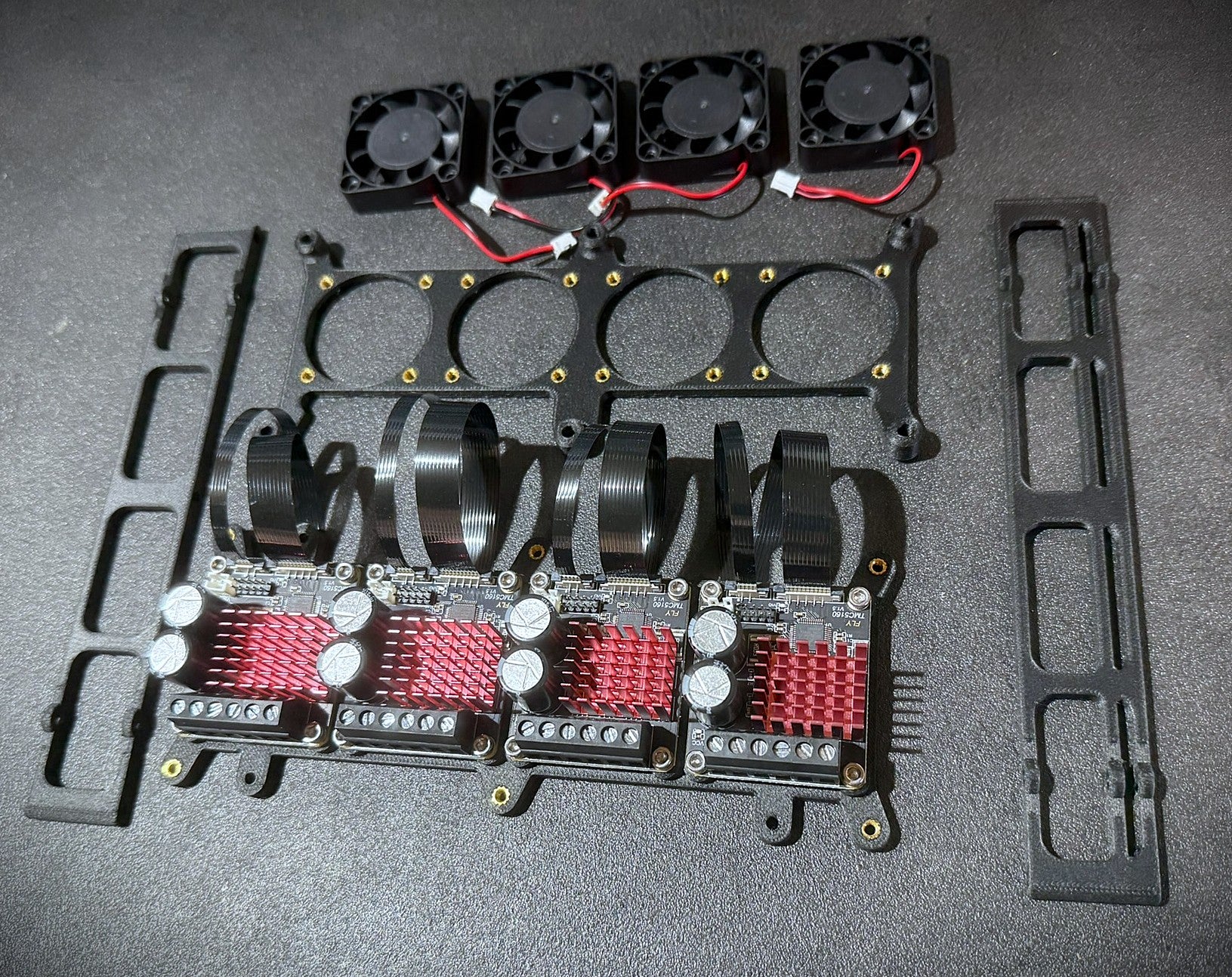

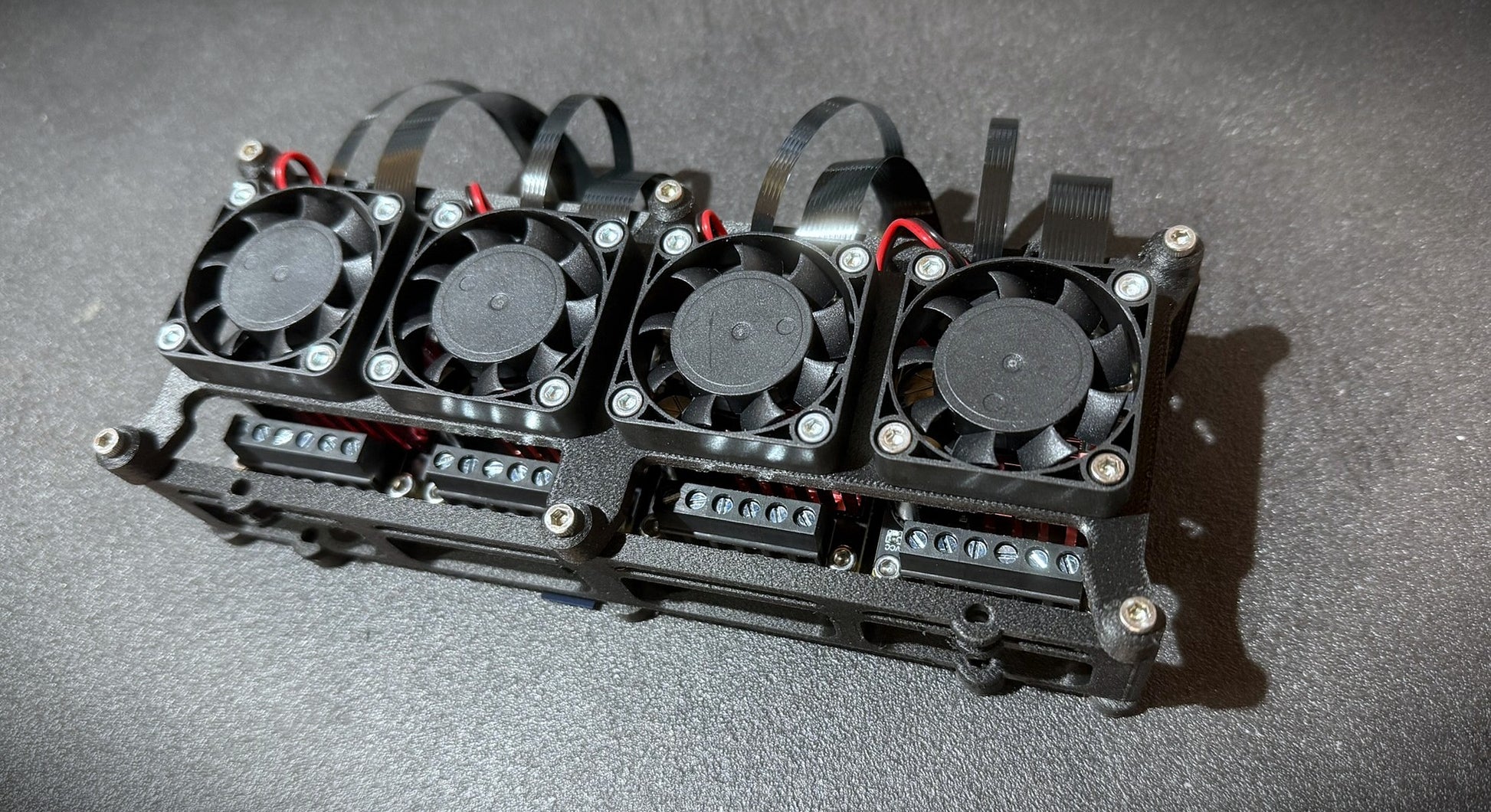

The kit is already assembled in a very efficient open air custom PA12CF support, with 4x silent 12v fans

TMC power settings + klipper custom config attached within the kit to get every last drop of power from your machine

Juste plug and play!

TMC5160Pro specifications
FLY HV-TMC5160 PRO V1.2
Features: TMC5160 high voltage external drive
Input voltage: 24-48V
Maximum current: 6A
Capacitor: 2*470uf
Applies to: firmware Marlin/RRF/Klipper
Supports trapezoidal curve acceleration

1 Step/direction interface with microstep interpolation microplyer
2 The highest resolution is 256 subdivisions
3 Support Chop2 stealth silent work and smooth movement
4 Supports resonance suppression for mean resonance
5 Support spreadCycle high dynamic motor control chopper
6 Speed control support related to dcStep load
7 supports high-precision sensorless motor load detection stallGuard2
8 Supports coolStep current control, which can achieve up to 75% energy savings
Reference resistance to change in the firmware: 0.033



Fit:

-VCORE 3.0/3.1 AWD

-VCORE 4.0 HYBRID and AWD

-VZBot machines

non-exhaustive list



OPTIONAL:

Genuine MeanWell LRS-450-48 (450W)

Genuine MeanWell LRS-600-48 (600W)
