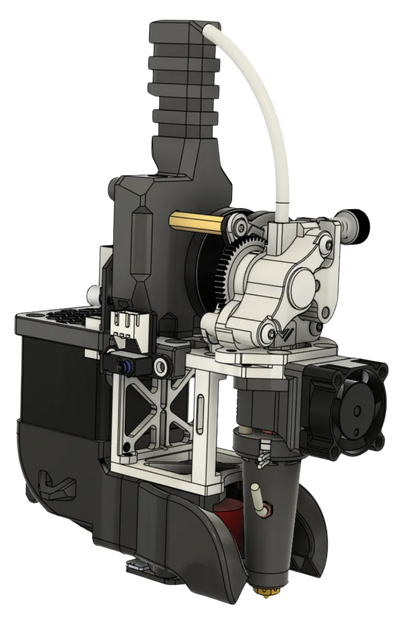

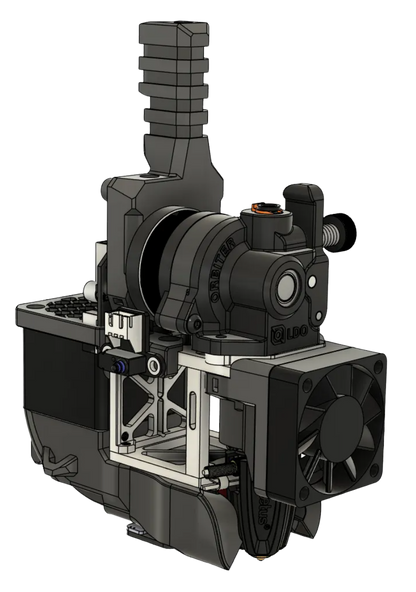

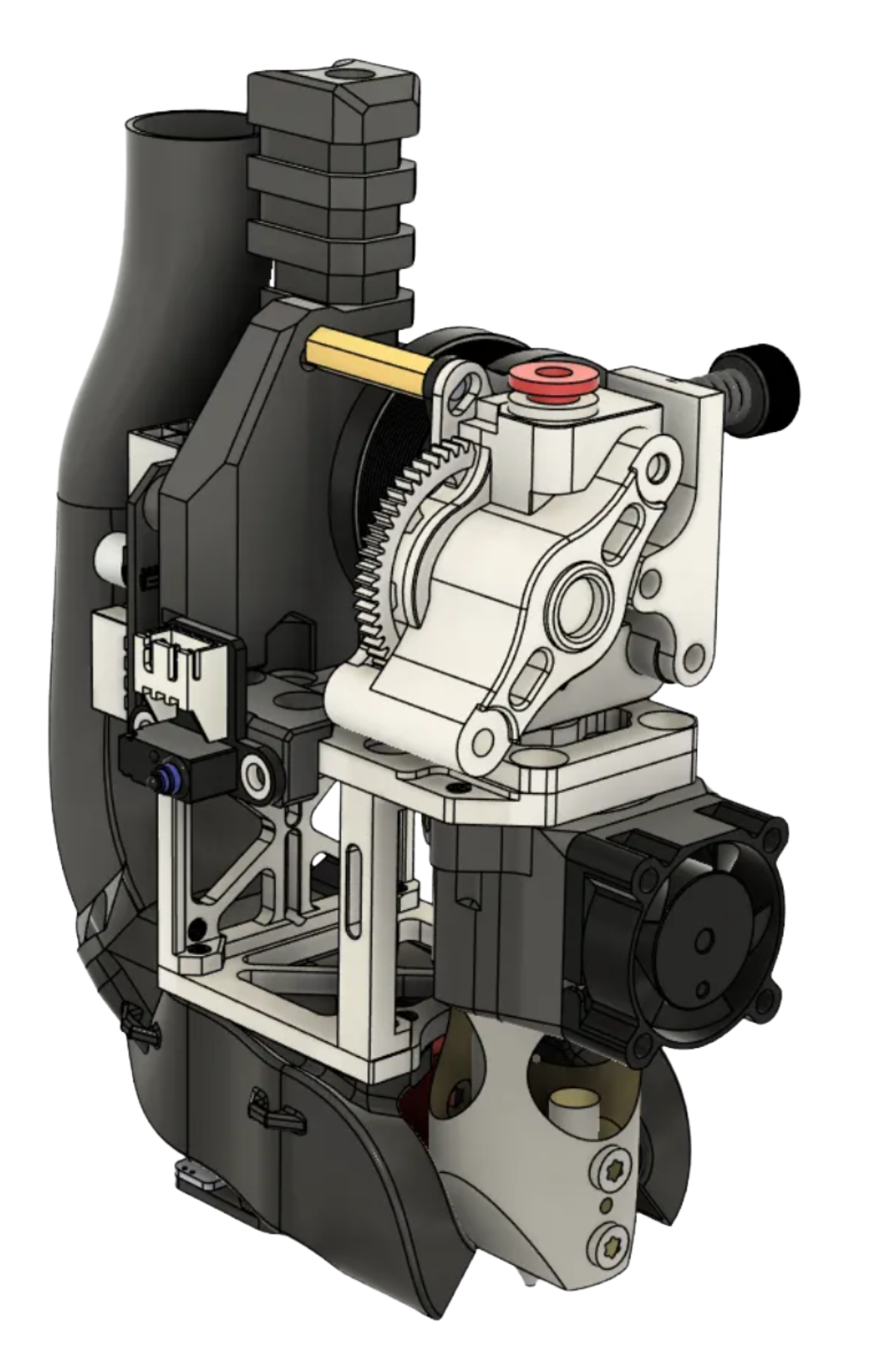

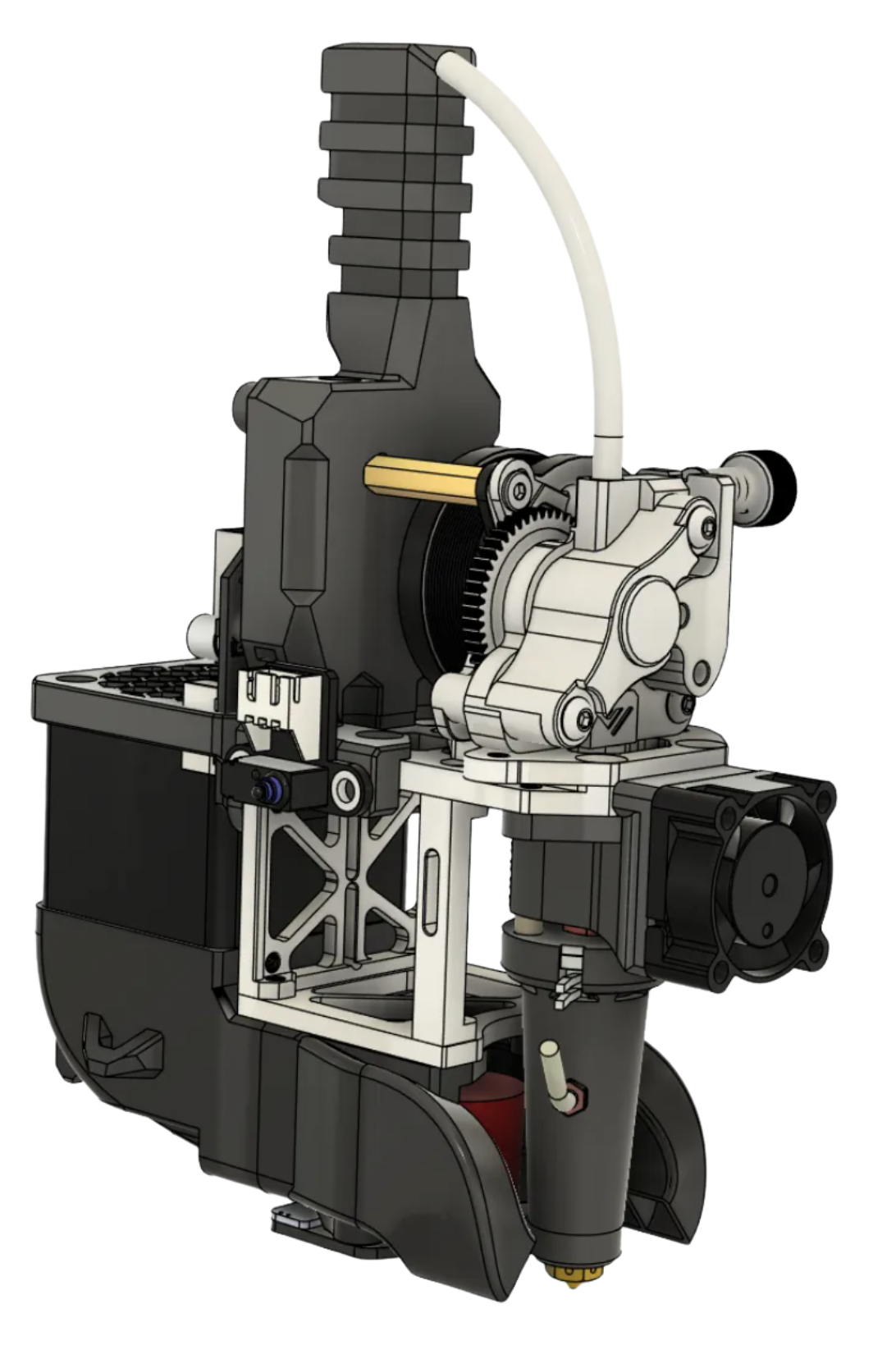

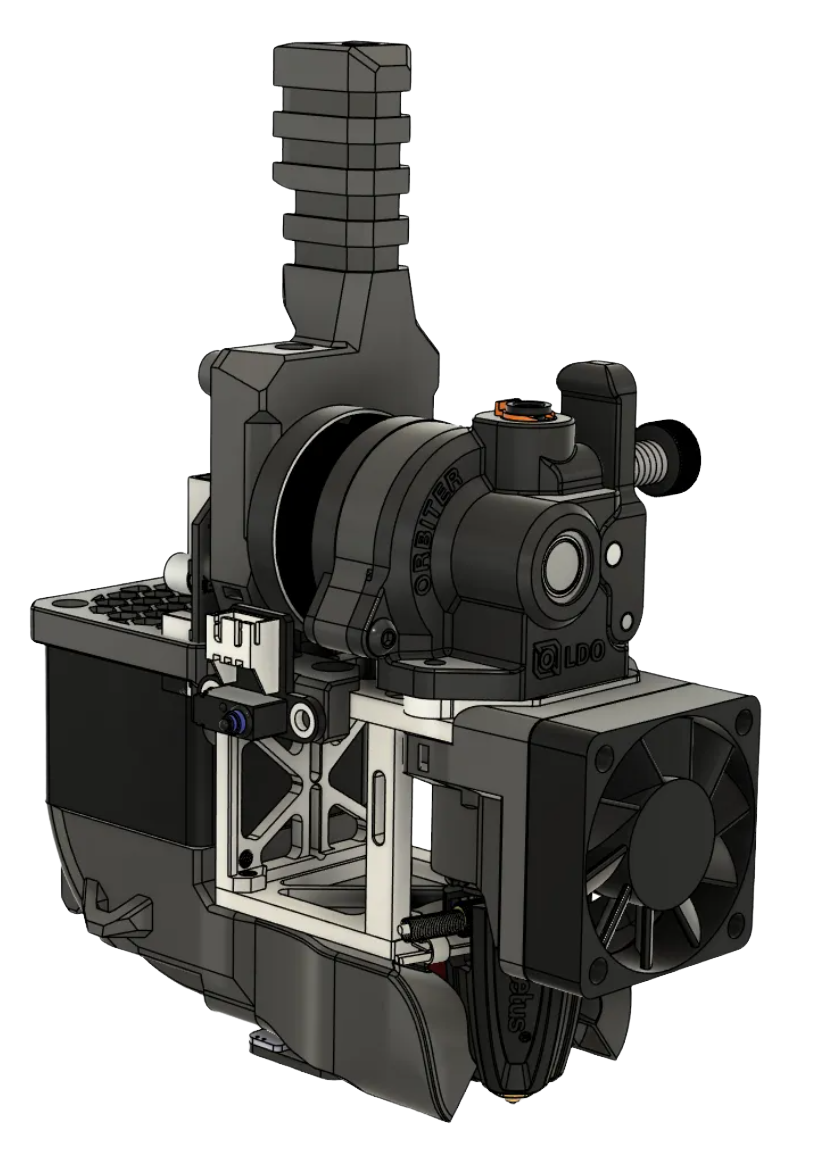

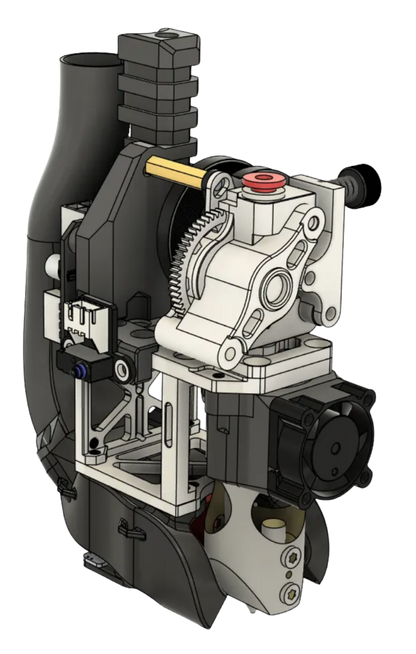

[PPS-CF] SINGLE VC4 CNC toolhead (Printed parts Only)

Printed parts set for the VC4 CNC toolhead, made of industrial grade PPS-CF

PPS-CF is a composite blend made of polyphenylene sulfide and carbon fiber

It is a semi-crystalline technical thermoplastic characterized by high resistance to heat and chemicals.

With thermal stability from -100°C to over 285°C (HDT), PPS-CF is an ideal choice for applications requiring resistance in extreme temperatures. This material has excellent mechanical properties, including high toughness, strength, and wear resistance, however, it can be more brittle than materials than PA12-CF. Highly dielectric and low dissipation factor, further increase its attractiveness for electrical and electronic applications.

Those caracteristics are the closest from the PEEK, making it ideally suitable to difficult environment.

MOUNTING

Allow multiple configurations across a wide selections of extruders and Hotends of the Market, direct metal contact.

non exhaustive list

Printed Parts Associated

Those carriages are compatible with a specific set of parts

They allow few configurations:

Choose bellow the set corresponding to your needs

Start with the hotend type, then choose the cooling type (Cpap or 4028), then choose the toolboad you have. (IDEX have T0 and T1 toolheads, so parts are doubled)

The table here can help you:

Printed parts set from BRS comes natively with all insert installed, parts are annealed like always to get the best from those composites

MANUAL:

A general manual can be found here, the rest of the setup is included in the Ratrig process

If a question is to adress, dont hesitate to ask.

Please note that the printed part files are not compatible with the stock RatRig toolhead.

LICENSE:

This Product is released with the consent of commercial use from his creator Cristian, by purchasing here you support his work.

A big thanks to him.
