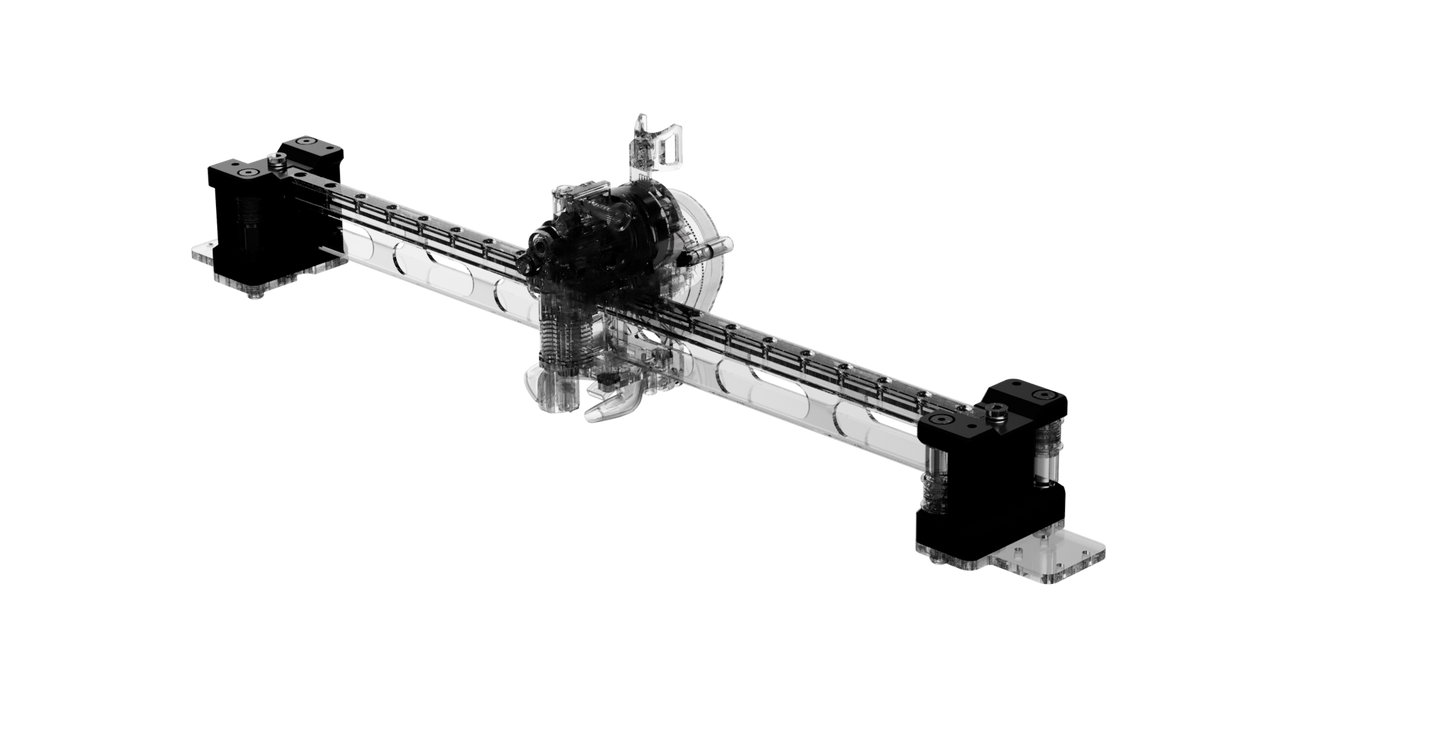

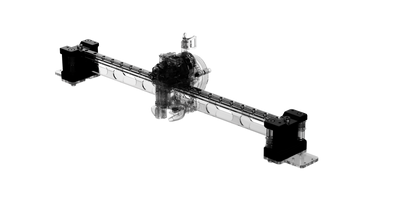

Vcore Joiners for VZ toolhead

4 types lights Joiners for VC3 and VC3.1 to match VZ toolhead footprint all made out of PA12CF15 (Nylon carbon fibers)

The Joiners has been redesigned to remove the mounting system, and make a more strong join with the plate, removing the stress on the 2 idlers bolts, 2 screws for motion shaft types, 2 screws for the join as it should be.

All Shoulder bolts iterations (3.4 revision) has been reworked to make the Join more stable in the Base Alu/CF plates (3.5a, b, and c revision of the GITHUB)

Made for MGN9/12 only, small recess to allow longer X distance motion,

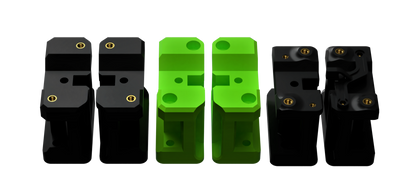

3 Versions:

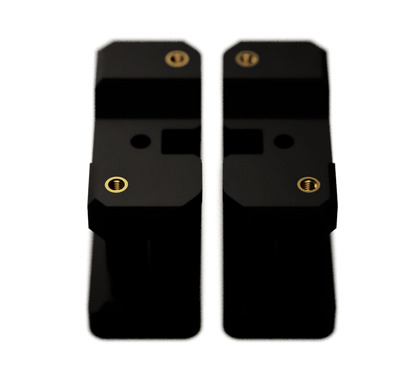

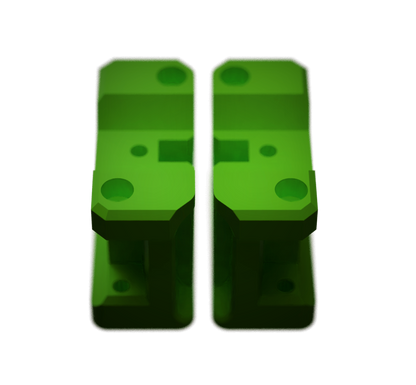

VC3.0 Standard / M5 screws:

-Classic (M5) Joiners for MGN9 rail and VZ X bonus clearance

(M5 bolts not included)

VC3.1 Standard / Shoulder-bolts:

-Classic (Shoulderbolt) Joiners for MGN9 rail and VZ X bonus clearance

(shoulder bolts not included)

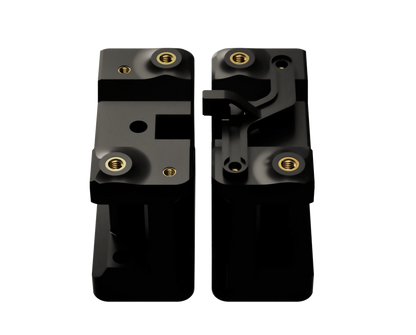

VC3.0/VULCAIN Shoulder Bolt:

-Lighter (Shoulderbolt) joiner for VC3.0 or VULCAIN (upcoming design), for MGN9 rail and VZ Xbonus clearance, Optical endstop pin included

(shoulder bolts or M5 not included, However it can be chose in the list )

VC3.1/VULCAIN Shoulder Bolt:

-Lighter reinforced (Shoulderbolt) joiner for VC3.1 or VULCAIN, for MGN9 rail and VZ Xbonus clearance, Optical endstop pin included

(shoulder bolts or M5 not included, However it can be chose in the list )

BRS-Engineering advise to use the SpannSystem brand new 2020 alluminium milled tube, to enjoy the precision of a lightweight and durable crossbar, made in Europe, See more here
