SpannSysteme
X-Gantry for RatRig V-Core 4
X-Gantry for RatRig V-Core 4
Prix habituel
$90.00 USD
Prix habituel
Prix soldé
$90.00 USD
Prix unitaire
par
Taxes incluses.
Frais d'expédition calculés à l'étape de paiement.
Service de retrait disponible à 45 Ter rue de la résistance
Habituellement prête en 2 à 4 jours
BRS-ENGINEERING is now the only reseller and store interface for SpannSysteme in EU, and extensively to the rest of the world.
As you may have see on the SpannSysteme store page, all the products are labelled "Not in stock", that is because BRS-Engineering store is now making the relay to place an orders for those items.

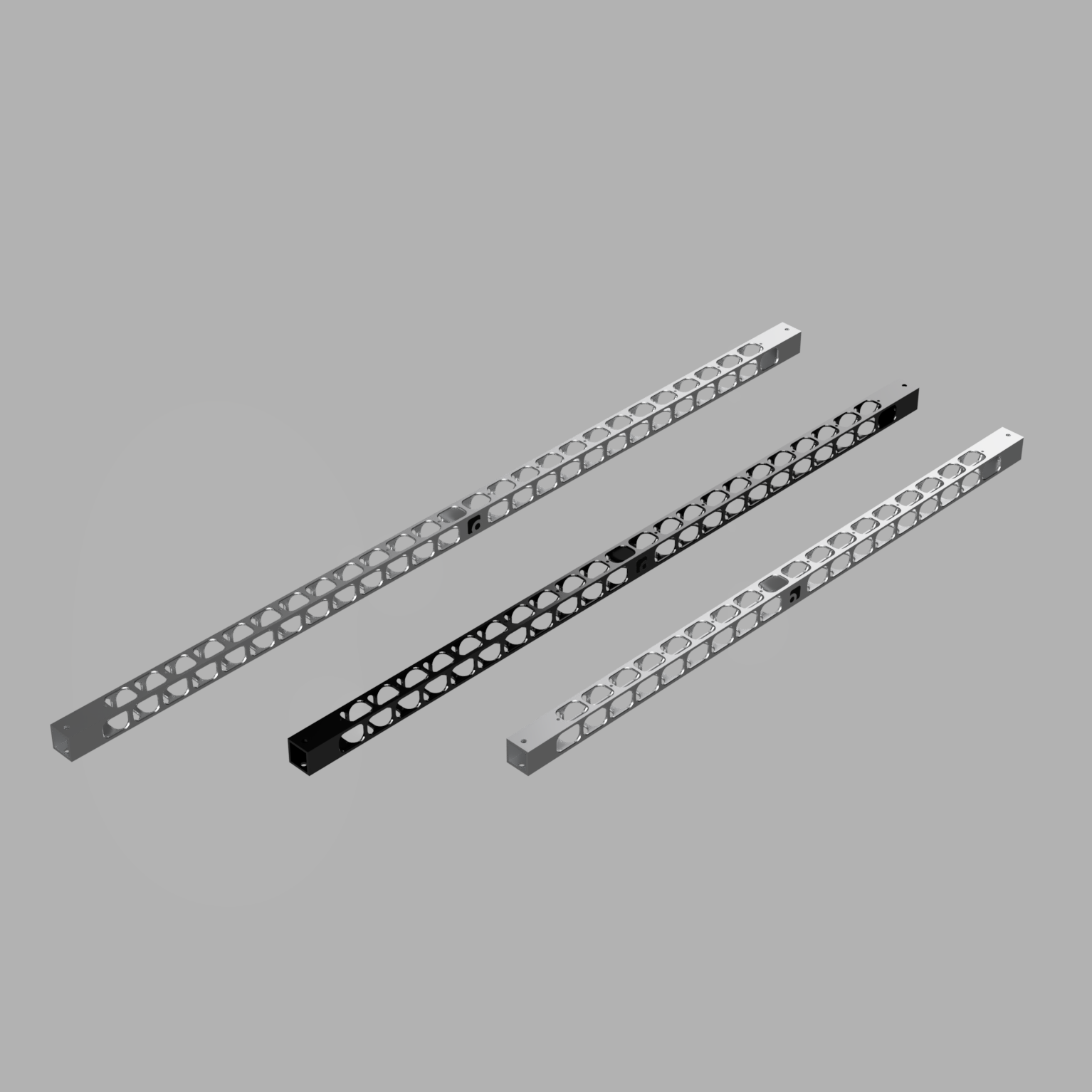

X-Gantry for RatRig V-Core 4
Compatible for: V-Core 4
-
Dimensions:
- VC4-500: 725 x 20 x 20 mm
- VC4-400: 625 x 20 x 20 mm
- VC4-300: 525 x 20 x 20 mm
-
Weight:
- VC4-500: 124 g (vs. 334 g of 2020 extrusion)
- VC4-400: 105 g (vs. 288 g of 2020 extrusion)
- VC4-300: 91 g (vs. 242 g of 2020 extrusion)
-
System: Suitable for the RatRig V-Core 4 – 500
- MGN12 linear rails
- Material: EN AW 6060 T66
- Production: Precision CNC milling
-
Surface : (with minimal handling scratches)
- Raw aluminium
- Anodized black aluminium
-
Note:
- Mounting of the linear rail with M3x8mm screws (not included)
- Download 3D files: XY Spacer
- Made in Austria
- Mounting of the linear rail with M3x8mm screws (not included)
